The original “Drop-in” solution for consolidating roof penetrations – 20 year warranty

Medium Sigrist pipe chase housing for rooftop split system line penetrations  Sigrist pipe chase housing system for rooftop pipe penetrations and weatherproof building envelope protection

Medium Sigrist Pipe Chase Housing is designed to accommodate up to 4 split systems (16 lines)

Standard Color: Beige

Features:

  • .080” thick aluminum housing and curb (Not fiberglass or molded plastic)
  • UV protected powder coated finish (2mil thick)
  • Stainless steel fasteners
  • Full Thermal Break in the housing and curb and lid interior
  • Gaskets between the lid to housing and housing to curb connection points

Sizes

SMALL Designed for small AC condensing units – Accommodates up to 7 Sigrist Exit Seals®

Housing #: AL-161010 16.5″ x 10″ x 12.5″ tall
Curb #: AL-158 14.5″ X 8″ X 14″ tall
Curb #: ALTC-S18 14.5″ X 8″ X 18″ tall
Curb #: ALTC-S24 14.5″ X 8″ X 24″ tall

MEDIUM Sized to facilitate up to 4 split systems (up to 16 Sigrist Exit Seals® can be installed)

Housing #: AL-201412 20.5″ X 14.5″ X 12″ tall
Curb #: AL-1014 18.5″ X 12.5″ X 14″ tall
Curb #: ALTC-M18 18.5″ X 12.5″ X 18″ tall
Curb #: ALTC-M24 18.5″ X 12.5″ X 24″ tall

MEDIUM NEXT GEN

Housing #: AL-202018 20″ X 20″ X 18″ tall
Curb #: ALTC-MNG18 18″ X 18″ X 18″ tall
Curb #: ALTC-MNG24 18″ X 18″ X 24″ tall

MEDIUM DOUBLE LONG

Housing #: KH-32H 38″ X 14.5″ X 13.5″ tall
Curb #: KH-3214C 36″ X 12.5″ X 14″ tall
Curb #: KH-3218C 36″ X 12.5″ X 18″ tall
Curb #: KH-3224C 36″ X 13″ X 24″ tall

LARGE

Housing #: AL-343424 34″ X 34″ X 24″ tall
Curb #: AL-3232 32″ X 32″ X 14″ tall
Curb #: ALTC-L18 32″ X 32″ X 18″ tall
Curb #: ALTC-L24 32″ X 32″ X 24″ tall

DATA CENTER HOUSING

Housing #: DH-186024 60″ X 18″ X 24″ tall
Curb #: DH-165814 58″ X 16″ X 14″ tall
Curb #: DH-165818 58″ X 16″ X 18″ tall
Curb #: DH-165824 58″ X 16″ X 24″ tall

Also shown in the above images are Sigrist Exit Seals® installed on both sizes of Sigrist Pipe Chase Housings (Fully flashed in) Medium and Data Center shown

pipe chase housing

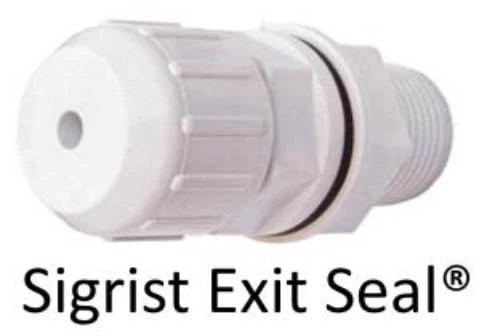

  • Sigrist Exit Seals® are available in 16 line/pipe sizes (1/4″ up to 2 7/8″)
  • Injection molded ABS resin that is high impact resistant and UV protected
  • Manufactured in the United States
  • Limited Lifetime Warranty
